PS-C95P Linear Potentiometer

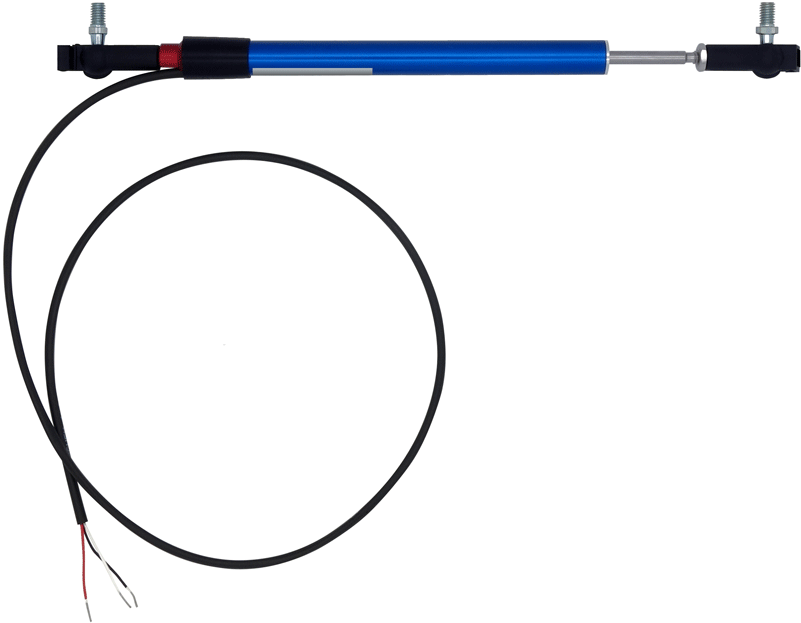

The PS-C95P series of Linear Potentiometers are designed to withstand the harsh environment of industrial and motorsport applications. Using proven ‘conductive plastic’ technology, these sensors offer high performance and reliability.

Technical Data PS-C95P

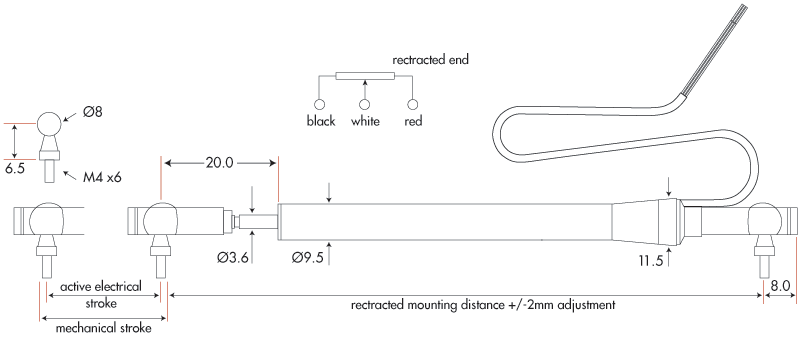

Active Electrical Stroke (mm)	12.5	25	50	75	100	125	150	175
Retracted Mounting Distance (mm)*	102.5	115	149	175	205	230	260	285
Weight Approximate (g)	20	23	27	32	36	42	45	49
Resistance ( KOhms +/-20% )	1.0	2.0	4.0	6.0	7.5	9.5	11.5	13.5

Specifications

Maximum Supply Voltage	40 VDC
Resolution	Essentially Infinite
Repeatability	≤ 0.01mm
Operational Speed	10 M/s max
Mechanical Life	> 25 Million Cycles
Temperature Range	-30 to +150˚C
Environmental Sealing	IP67
Linearity Error	less than 0.5%, (typical 0.25%)
Cable Type*	Raychem 55A0111-24 DR25 Jacket (nominal OD 2.8mm 24/26 AWG 55M as option 55M is high strength copper silver plated
Cable Length*	350mm (extra length cost plus)
Track Technology	Conductive Plastic
Housing Material	Aluminium
Mechanical Fixings	Pop Joints (2 x mating Ball Pins supplied with each sensor).

Features

• Rugged construction
• Excellent linearity
• Sealed to IP67
• Long life
• Miniature design
• Shaft (lip seal) as option
• Shaft 2 compressed O rings as standard

CONNECTORS

We can supply sensors fitted with Binder type 719 male connectors. A matching female connector is supplied for the customer to attach to the loom.

How to Order

• PS C95P Stroke length
(eg. PS C95P 100)

If your application requires a low force to move the shaft please add LF to the product code.

email sales@position-sensors.co.uk
tel. +44(0)1202 064834

Specifications are subject to change, without notice.

Warranty: The PS-C95P series are backed by a 1 year warranty. The user is responsible for correct installation and application suitability.

Since the suitability of these products depends upon a wide range of factors not in our control, the manufacturer expects and understands that you will conduct the testing and evaluation necessary to determine that these products are suitable for your application. Whilst every effort is made to ensure the details are correct at the time of publishing, the manufacturer reserves the right to make material changes, and or technical changes without notification.

* Custom options are available on request.
