Technical Data PS-C15MP
| Active Electrical Stroke (mm) | 25 | 50 | 75 | 100 | 150 | 200 | 250 |
|---|---|---|---|---|---|---|---|

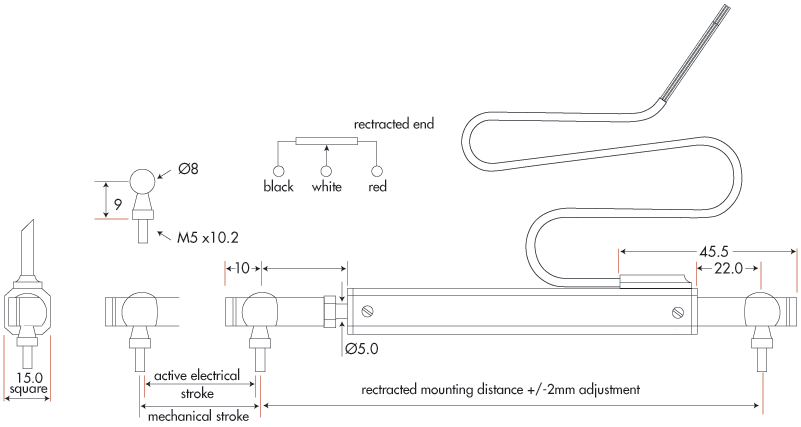

| Retracted Mounting Distance (mm)* | 165 | 190 | 215 | 240 | 290 | 340 | 390 |
| Resistance ( KOhms +/-20% ) | 2.5 | 5.0 | 7.5 | 10 | 10 | 10 | 10 |
Specifications
| Maximum Supply Voltage | 40 VDC |
|---|---|
| Resolution | Essentially Infinite |
| Repeatability | ≤ 0.01mm |
| Operational Speed | 10 M/s max |
| Mechanical Life | > 25 Million Cycles |
| Temperature Range | -40 to +125˚C |
| Environmental Sealing | IP65 |
| Linearity Error | less than 0.5%, (typical 0.25%) |
| Cable Type* | Raychem 44A0111-24 Raychem Thermorad Jacket nominal OD 3.4mm 24/26 AWG 55A option 55M is high strength copper silver plated |
| Cable Length* | 350mm (extra length cost plus) |
| Track Technology | Conductive Plastic |
| Housing Material | Aluminium |
| Shaft Material | Stainless Steel |
| Mechanical Fixings | Pop Joints (2 x mating Ball Pins supplied with each sensor). |
